4DH - Rotary Rock Tumbler

Interactive 3D Model

Use the AR (Augmented Reality) feature on your mobile device to view this machine in the space around you.

For instructions on how to navigate this feature, watch this video on our youtube page: MixRight AR Tutorial

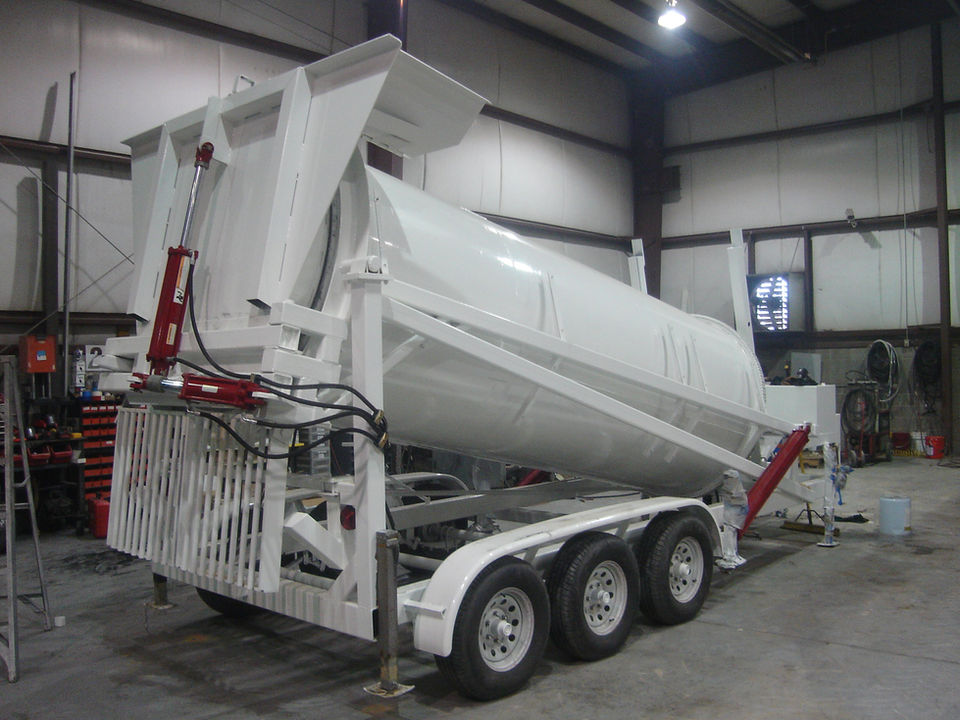

The Tumble Right 4DH rotary rock tumbler is designed to tumble both stone and concrete products and has 14,000 lbs of capacity and can be ready to tumble within 10 minutes of pulling onto even the most remote jobsite.



The 4DH requires only one person to both operate the controls and load with either a loader or forklift.

Below are some examples of products that tumble well in the 4DH.

Dimensions & Weight

10'3" tall (approximately)
8'4" at widest point
20'-23' long depending on options
13,000-17,000 lbs
15' drum length
5' drum diameter

Additional Info on 4DH Rotary Rock Tumbler

Equipment

  • Drum: The drum is built with quality and longevity in mind. The standard 3/8" drum is designed to take years of abuse. The most popular upgrade is the 3/4" drum, which ensures drum wear will not be an issue for the life of the machine.

  • Drum Stabilizing System: The drum stabilizing system comes standard on every machine and is built with your safety in mind. The system ensures the drum is secure when it is in the operating, elevated position.

  • Trailer Construction: The tumbler is mounted on a rugged and versatile trailer. Heavy duty axles allow for transportation to the quarry or the yard. The double axle trailer comes with a brake system. The tumbler can be pulled with a standard sized pick-up truck rated for the weight of the machine.

  • Rotation System: The rotation system is a chain and sprocket system, driven with a hydraulic motor. The rotation speed is variable. The drive system is adjustable, durable, and reliable.

Motor Options

For all our Concrete Mixer Batching Plants, we offer the type of motor that would work best for you operation.



  • Gasoline: The standard gasoline motor is a Robins Subaru. This electric start motor is durable and reliable, and will serve you well day after day.

  • Diesel: The diesel motor is from Yanmar or Isuzu. This motor gets better fuel economy than the gasoline motor, and is convenient in most yards and quarries where diesel fuel is usually more readily accessible.

  • Electric: The electric motor is the most reliable and efficient motor system. The tumbling system requires a minimum of 220 single phase power. Because power requirements vary by customer, the electrical panel is built to your power requirements.

  • Combination: A combination electric and gasoline or diesel motor system allows for more versatility, and ensures the use of the most efficient power source available.

Project Details

Project Details for 3DH Rock Tumbler_edi

Equipment Chart

Equipment Info for 4DH Rock Tumbler_edit
